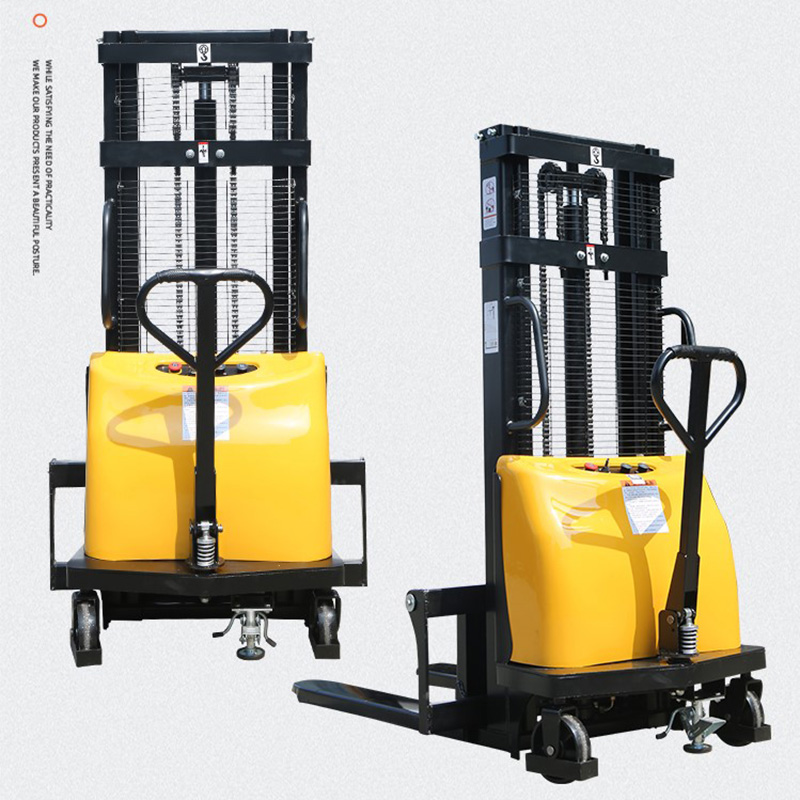

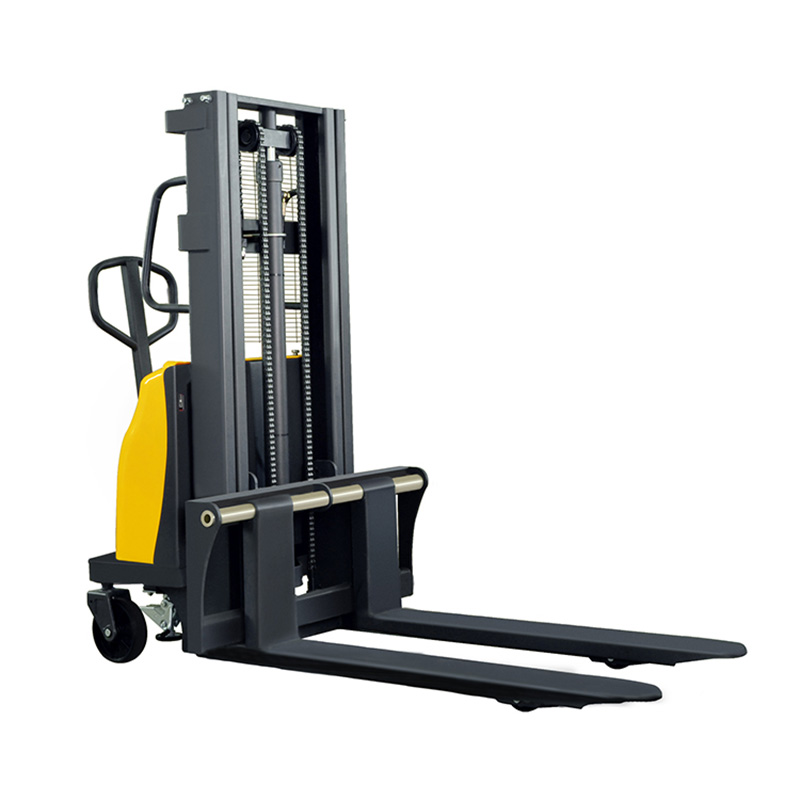

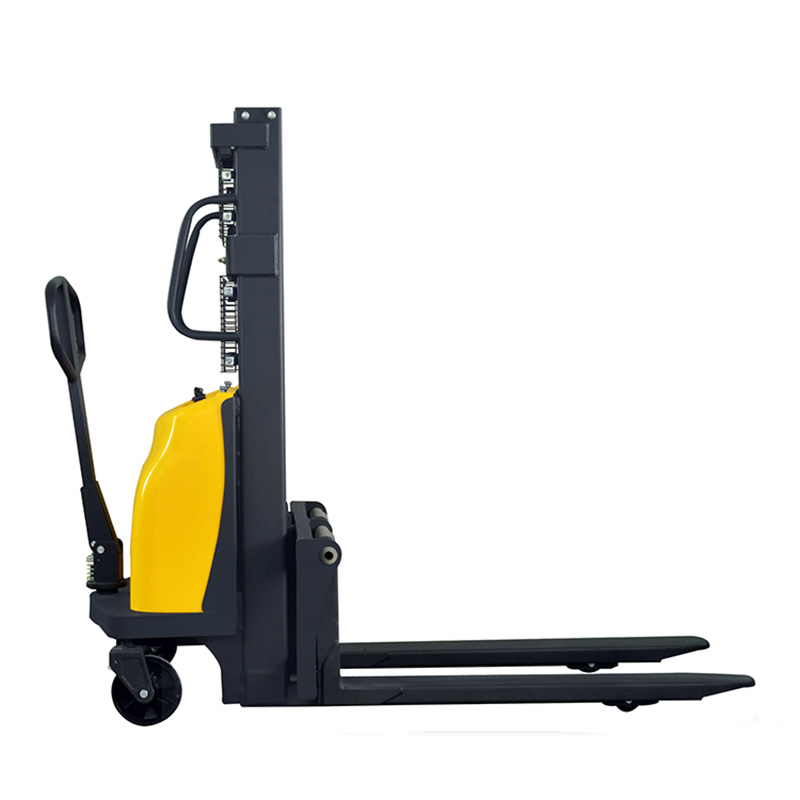

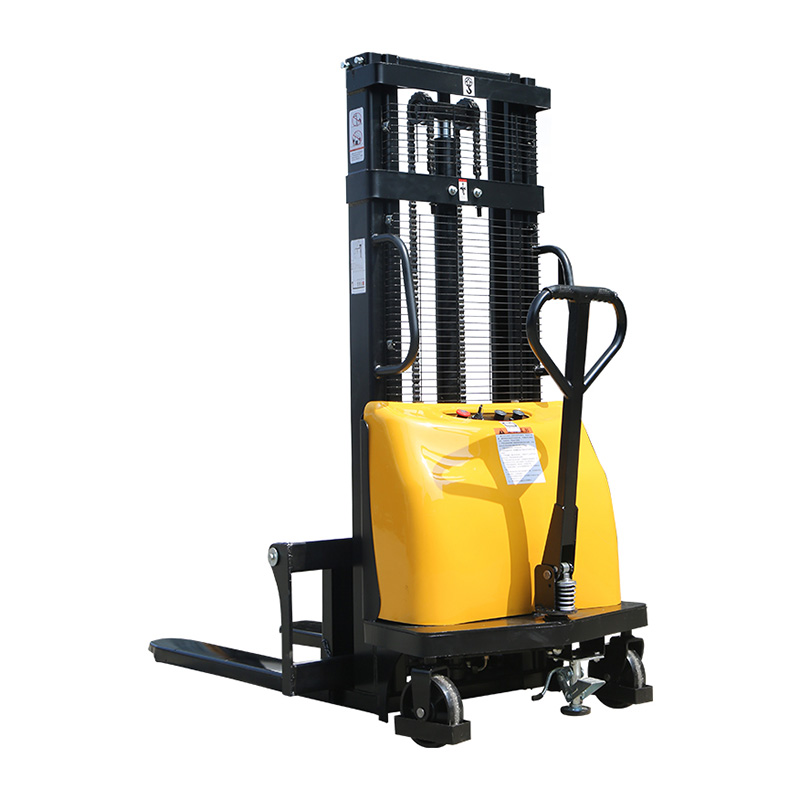

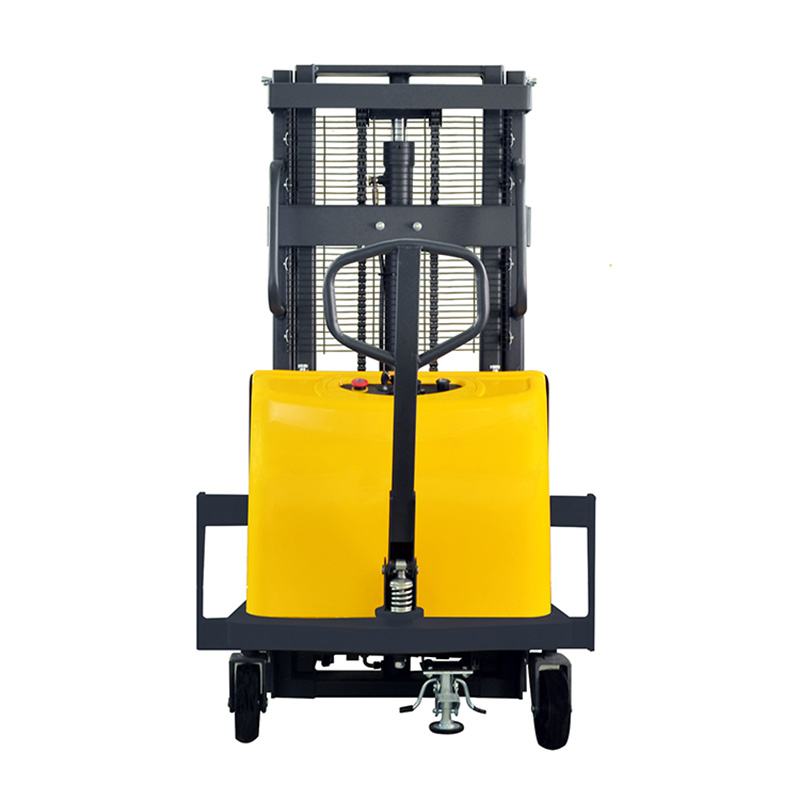

electric stacker, electric forklift, electric forklift truck

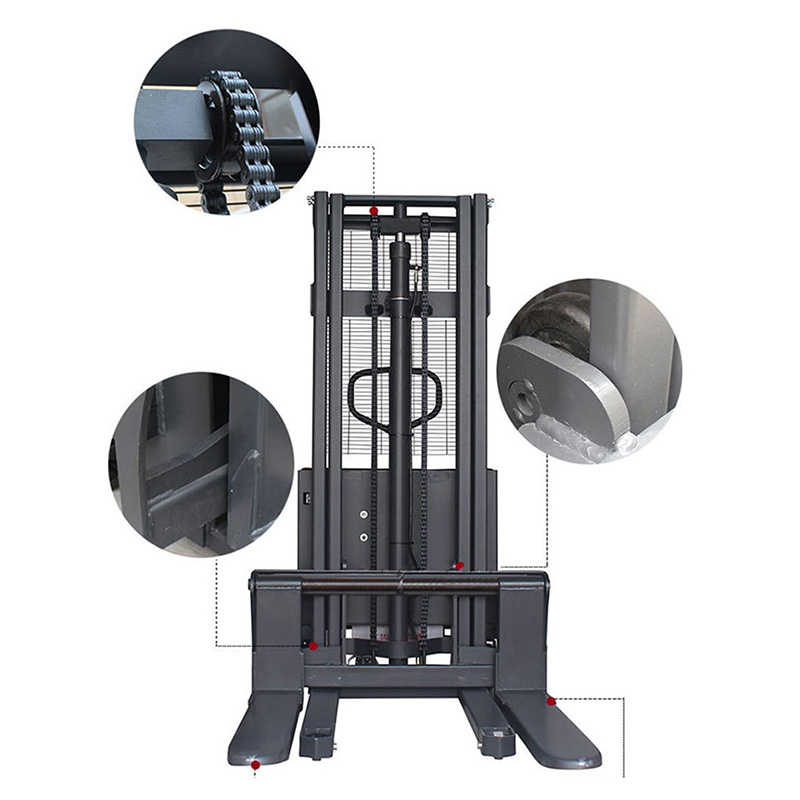

1. Handle-castor chain assist steering system greatly reduces the labor intensity.
2. Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
3. Over-discharge protection device greatly prolongs the battery use time.
4. Overall type adjustable forks,which can be lowered to the same level of the legs.
5. Easy operating foot brake.
|
Model |
Unit |
BDD-A15 |
|
Driving mode |
|
Manual |
|
Rated load |
Kg |
1500 |
|
Load center distance |
mm |
500 |
|
Front overhang |
mm |
745 |
|
Wheel tread |
mm |
1185 |
|
Weight(with battery) |
Kg |
400 |
|
Wheel material |
|
Nylon wheel |
|
Front wheel size |
mm |
Φ180*50 |
|
Rear wheel size |
mm |
φ80*70 |
|
Lifting height of fork above ground |
mm |
1600/2000/2500/3000/3500 |
|
Height of the gantry is lowed |
mm |
2090/1590/1840/2090/2340 |
|
Maximum height of forklift work |
mm |
2100/2500/3000/3500/4000 |
|
Min. height of fork above ground |
mm |
90 |
|
Overall length |
mm |
1860 |
|
Fork size |
mm |
50*160*1100 |
|
Overall width |
mm |
800 |
|
Fork width |
mm |
320-1000 |
|
Radius of turning circle |
mm |
1425 |
|
Lifting speed, full load/no load |
m/s |
0.08/0.1 |
|
Falling speed, full load/no load |
m/s |
0.09/0.12 |
|
Service brake |
|
Mechanical brake |
|
Lifting motor power |
kw |
1.6 |
|
Battery |
V/Ah |
12/120 |
|
Noise level according to DIN12053 |
DB(A) |
<70 |
1. Q: How long is the warranty of your products?
A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.
2. Q:What payment terms do you accept?
A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.
3. Q:Can you customize the configuration/logo/lable/color according to our requirements?
A:Of course .
4. Q:Do you accept small order?
A:Yes,the MOQ is 1 unit for most of the products, for very small forklift, we can check case by case.
5. Q:Are you factory？
A:Of course, Taixing Andylift Equipment Co.,Ltd. was founded in 2009, located in Taixing city, Jiangsu province of China, has experienced research and development to meet your needs
6. Q:How long does it take to execute my order？
A:Pls tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule
