electric stacker electric forklift electric forklift truck battery forklift

Short Description:

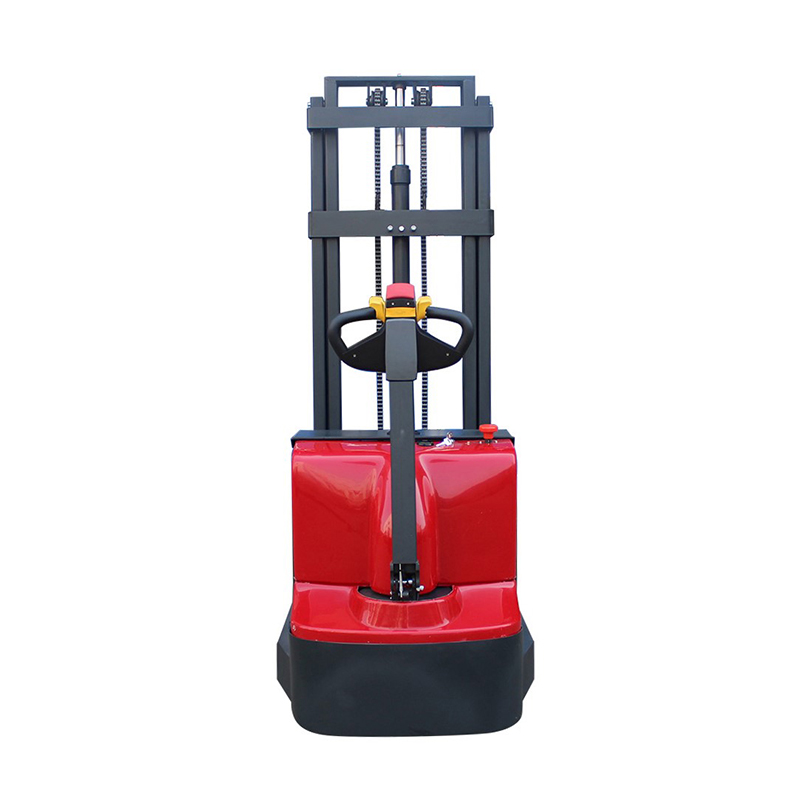

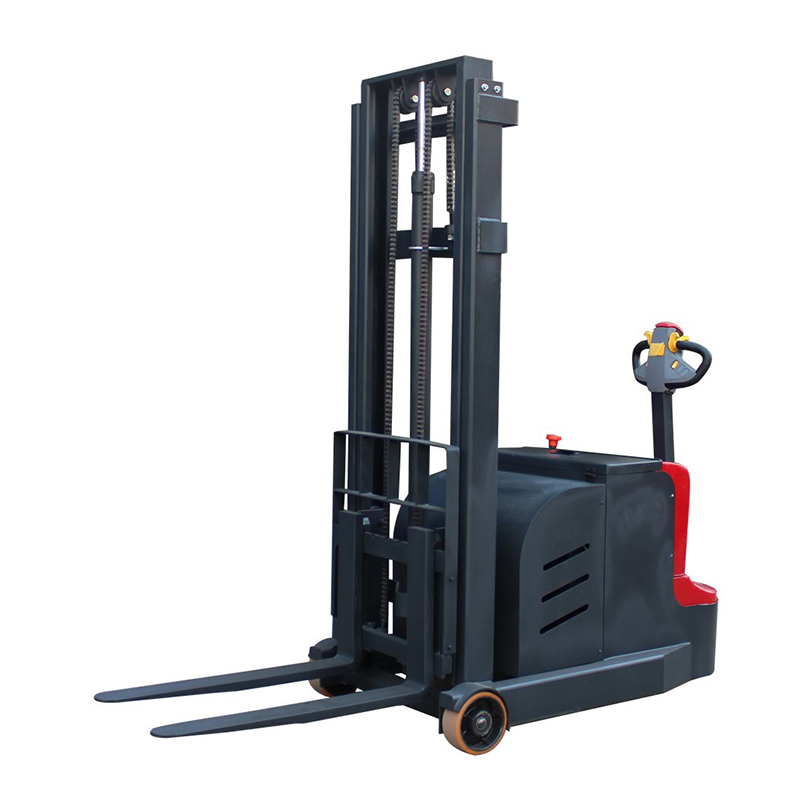

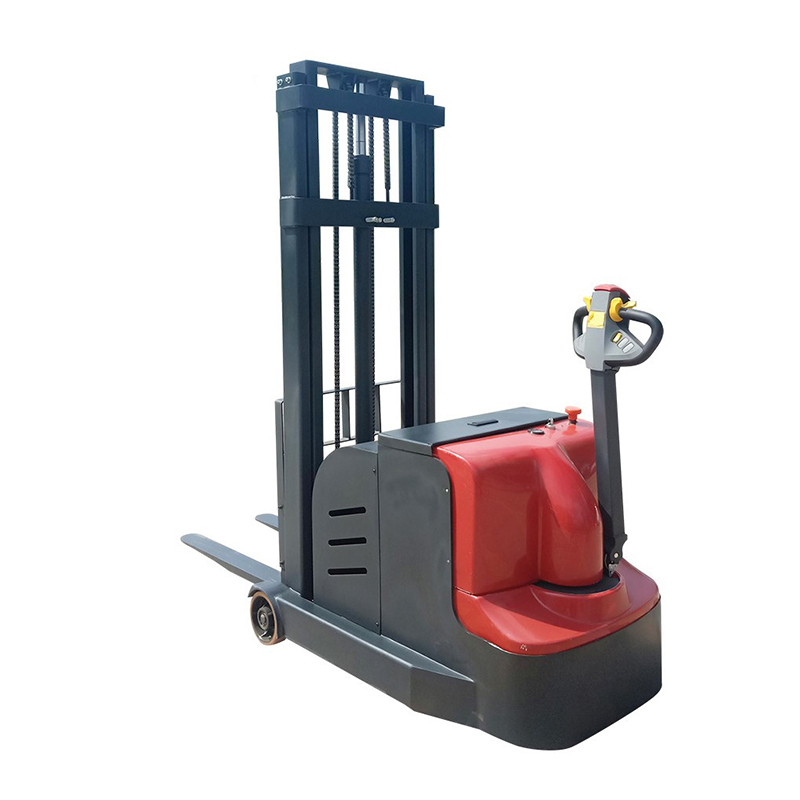

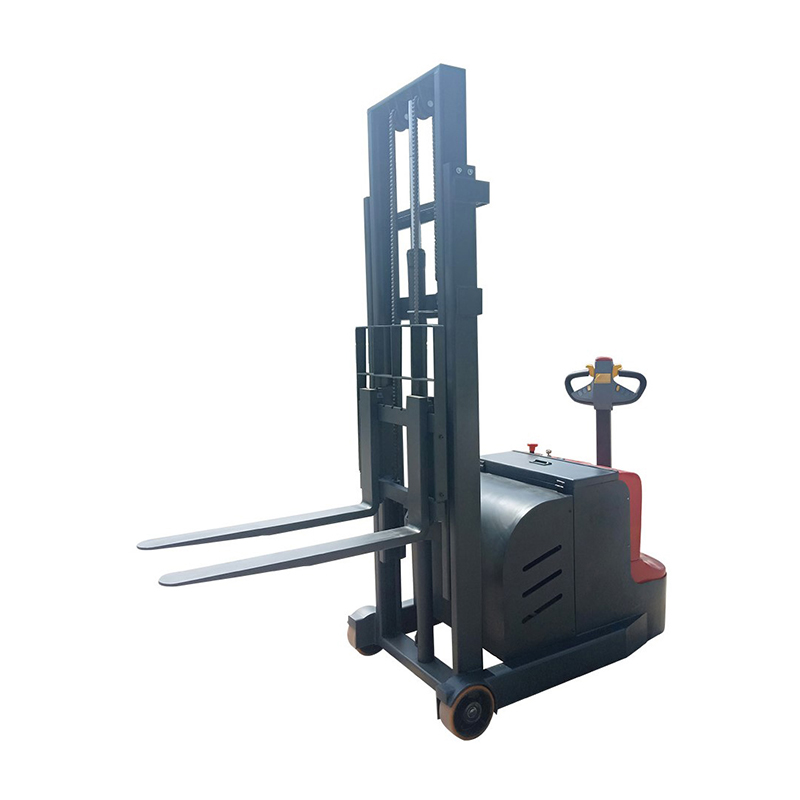

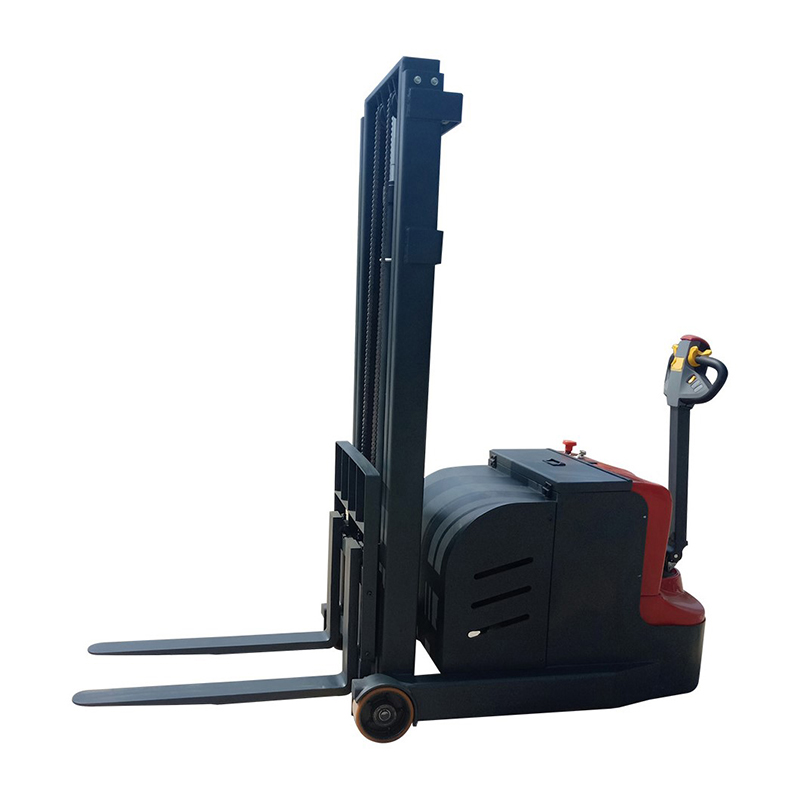

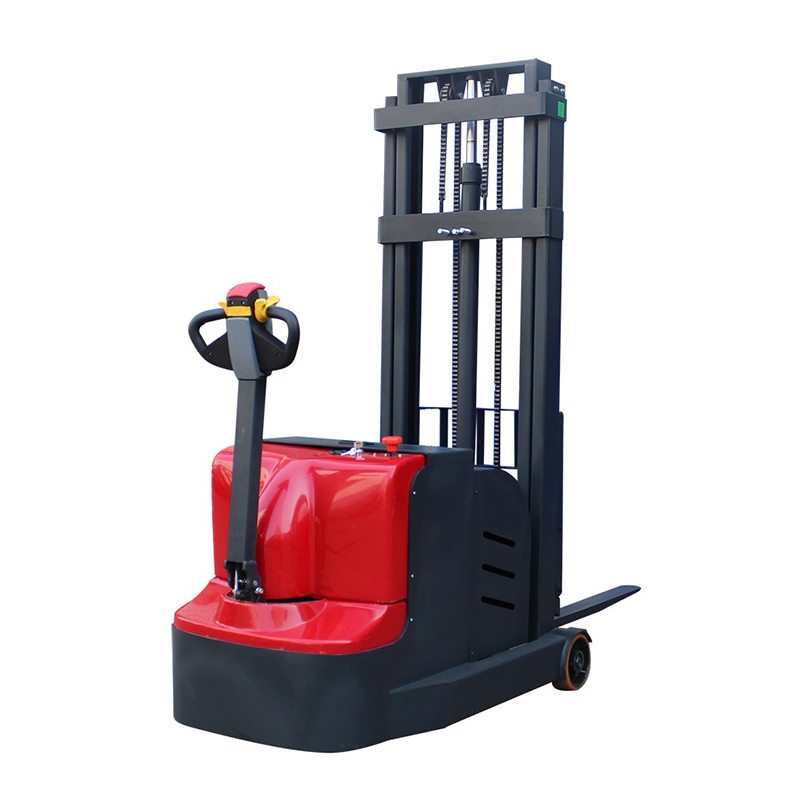

This type walkIE counter balance electric stacker CDD-AY08, no leg support  , can suitable for all pallet including Europe pallet and closed pallet, the standard configuration of fork is used forging fork, the maximum loading capacity is 800kg, the maximum lifting height is up to 3500mm, it is easy to operate for workers


Product Detail

Product Tags

Suitable pallet

detail (1)

Products parameter

Model

Unit

CDD-AY08

Rated load

Kg

800

Load center distance

C(mm)

460

Weight(with battery)

Kg

1100-1200

Front wheel size

(mm)

φ200*80

Rear wheel size

(mm)

φ210*70

Lifting height of fork

H3(mm)

1600/2000/2500/3000/3500

Height of the gantry is lowed

H15(mm)

2080/1580/1830/2080/2330

Maximum height of forklift work

H14(mm)

2080/2500/3000/3500/4000

Min. height of fork above ground

H13(mm)

35

Overall length

L1(mm)

2600

Fork size

s/e/l(mm)

35*100*920

Overall width

B1(mm)

890

Channel width(1000*1200)

Ast(mm)

3150

Driving speed, full load/no load

Km/h

5/5.5

Lifting speed, full load/no load

m/s

0.1/0.14

Service brake



Electromagnetic brake

Driving motor power

kw

0.75(AC)

Lifting motor power

kw

2.2(DC)

Battery 24v

Ah

120

Noise level

DB(A)

<70

Our equipment

detail (2)

Our packaging

detail

FAQ

Q: How long is the warranty of your products?
      A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.

2.   Q:What payment terms do you accept?
      A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.

3.   Q:How long can I get my order finished?
      A:15-20 days for classic forklift , stacker and attached, 5-10 days for spare parts.

4.  Q:Can you customize the configuration/logo/lable/color according to our requirements?
      A:of course.

5.   Q:Do you accept small order?
      A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case by case.
