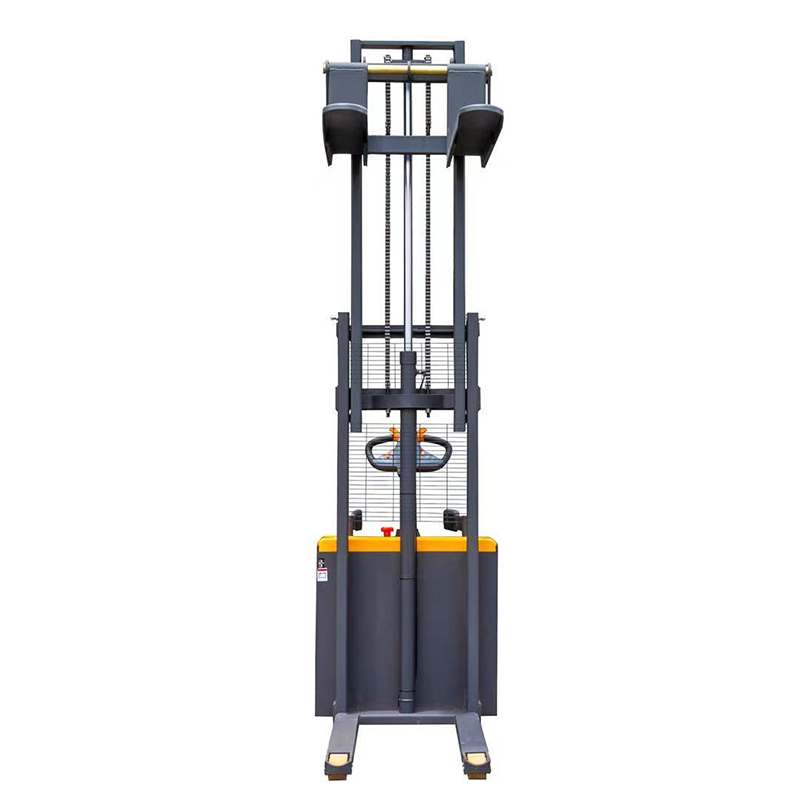

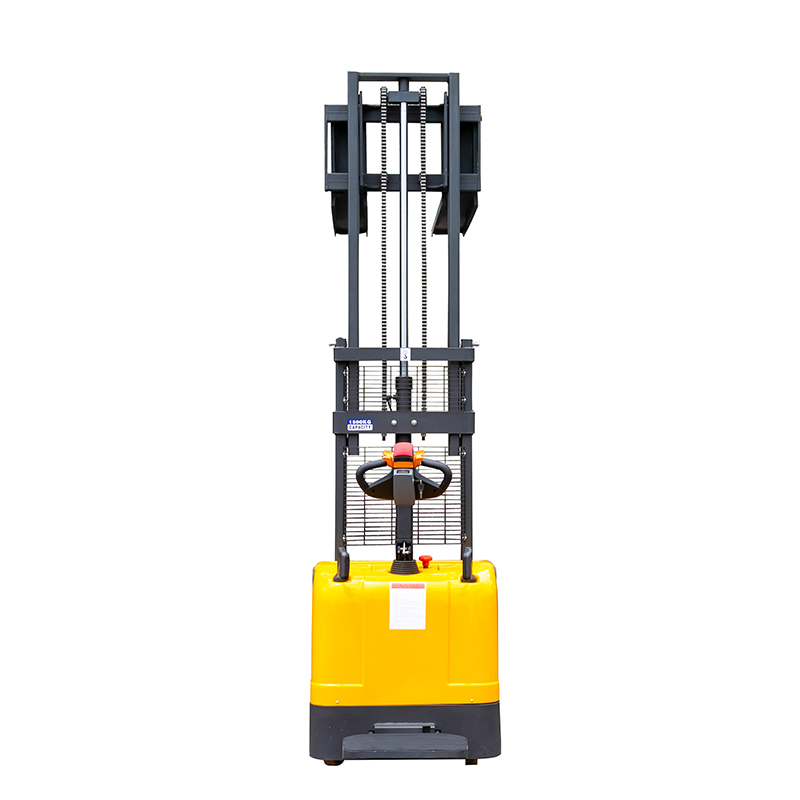

electric stacker electric forklift electric forklift truck battery forklift
|
Model |
Unit |
CDD-B15 |
CDD-B20 |
|
Rated load |
Kg |
1500 |
2000 |
|
Load center distance |
mm |
500 |
500 |
|
Front overhang |
mm |
960 |
960 |
|
Wheel tread |
mm |
1555 |
1555 |
|
Weight(with battery) |
Kg |
700-1100 |
700-1100 |
|
Wheel material |
|
PU |
PU |
|
Front wheel size |
mm |
φ250*80 |
φ250*80 |
|
Rear wheel size |
mm |
φ80*70 |
φ80*70 |
|
Additional wheel size |
mm |
φ100*50 |
φ100*50 |
|
Number of wheels(X=driving wheel) |
|
1X+2/4 |
1X+2/4 |
|
Front-wheel track |
mm |
886 |
886 |
|
Rear-wheel track |
mm |
525 |
525 |
|
Lifting height of fork above ground |
mm |
1600/2000/2500/3000/3500/4000/4500/5000/5500 |
1600/2000/2500/3000/3500 |
|
Height of the gantry is lowed |
mm |
2090/1590/1840/2090/2340/2590/2090/2257/2423 |
2090/1590/1840/2090/2340 |
|
Maximum height of forklift work |
mm |
2090/2590/3090/3590/4090/4590/5090/5590/6090 |
2090/2590/3090/3590/4090 |
|
Min. height of fork above ground |
mm |
90 |
90 |
|
Overall length |
mm |
2140 |
2140 |
|
Fork size |
smm |
60*170*1100 |
60*170*1100 |
|
Overall width |
mm |
850 |
850 |
|
Fork width |
mm |
690 |
690 |
|
Channel width(1000*1200mm tray) |
mm |
2464 |
2464 |
|
Channel width(800*1200mm tray) |
mm |
2401 |
2401 |
|
Radius of turning circle |
mm |
1600 |
1600 |
|
Driving speed, full load/no load |
Km/h |
4/5.6 |
4/5.6 |
|
Lifting speed, full load/no load |
m/s |
0.08/0.1 |
0.08/0.1 |
|
Falling speed, full load/no load |
m/s |
0.09/0.12 |
0.09/0.12 |
|
Service brake |
|
Electromagnetic brake |
Electromagnetic brake |
|
Driving motor power |
kw |
1.5（AC） |
1.5（AC） |
|
Lifting motor power |
kw |
2.2 |
2.2 |
|
Battery 24v |
Ah |
120/210 |
120/210 |
|
Battery weight |
kg |
268 |
268 |
|
battery size (length*width*height) |
mm |
650*260*480 |
650*260*480 |
|
Noise level |
DB(A) |
<70 |
<70 |
1. Q:May I visit your company?
A:We are always happy to serve you. our factory is located in Taizhou , jiangsu province.there are international flights nearby and the traffic is well developed, if you would like to order our products and visit our company , pls contact us for an appointment
2. Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.
3. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
4. how to buy the spare parts?
Pls offer the spare parts information, such as photos, parts code, machine serial number. Wherever you are, we will handle quickly and deliver the high quality genuine spare parts to you, by DHL,FeDEx, UPS, etc. It is fast
