electric stacker electric forklift electric forklift truck battery forklift

Short Description:

1.5ton electric stacker,pedestrian  electric forklift  truck  ,walkIE battery forklift

MOQ: 1pcs

FOB Price: $1550-$2350/pcs


Product Detail

Product Tags

Product description

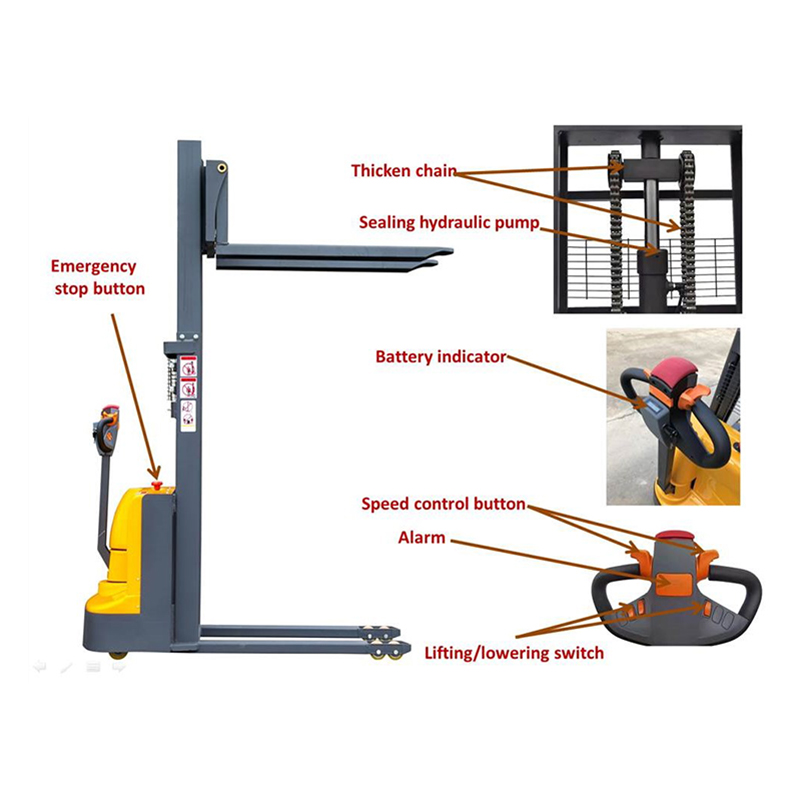

This light duty type walkIE full electric stacker CDD-A15, the maximum loading capacity is 1500kg,  the lifting height from 1600mm to 3500mm can option, it is the best solution for load and upload cargo in small space.

Product advantages

1. compact design and small dimensions, offer excellent visibility, can work efficiently and freely in a narrow space;

2. The handle has a turtle speed switch and the handle has an upright walking function;

3. 4-points support structure with side tiller, low center of gravity with excellent stability;

4. Double pallet design:two pallet handle at the same time, initial lift of load leg in increase ground clearance to negotiate easily ramps, dock levelers and bridge;

5. With floor type driving wheel, offer small turning radius, dustproof and waterproof motor, easy for maintenance;

6. With good ramp braking performance efficient electromagnetic parking brake;

7. With good shock absorber effect, the balance wheel assembly is detachable as a whole, which is convenient for maintenance;

8. Balance wheel height is adjustable, ensure the drive wheel life;

9. BDI with low voltage cut off protection device, protect battery and prolong the battery life time;

10. Low Noise development with quite motor;

Product parameter

Model

Unit

CDD-A15

Rated load

Kg

1500

Load center distance

mm

500

Wheel tread

mm

1555

Weight(with battery)

Kg

418-526

Wheel material



PU

Front wheel size

mm

φ250*80

Rear wheel size

mm

φ80*70

Additional wheel size

mm

φ100*50

Number of wheels(X=driving wheel)



1X+1/4

Front-wheel track

mm

886

Rear-wheel track

mm

525

Lifting height of fork above ground

mm

1600/2000/2500/3000/3500

Height of the gantry is lowed

mm

2090/1590/1840/2090/2340

Min. height of fork above ground

mm

90

Overall length

mm

1760

Fork size

mm

60*170*1100

Overall width

mm

800

Fork width

mm

690

Channel width(1000*1200mm tray)

mm

2200

Channel width(800*1200mm tray)

mm

2100

Radius of turning circle

mm

1370

Driving speed, full load/no load

Km/h

4/5.6

Lifting speed, full load/no load

m/s

0.08/0.1

Falling speed, full load/no load

m/s

0.09/0.12

Service brake



Electromagnetic brake

Driving motor power

kw

0.75(AC)

Lifting motor power

kw

2.2(DC)

Battery 24v

Ah

80

Noise level according to DIN12053

DB(A)

<70
